CRUGEN HT51

Engineered with qualities, features and details to go the distance in hard-working, hard-driving, all-weather conditions, the Crugen HT51 excels in both standard and workload applications. A perfect replacement tire with an extensive line-up of sizes and applications.

WARRANTIES

NOTE:NOT VALID FOR OE TIRES

pdf download
  • KUMHO MANUFACTURER’S WARRANTY
    KUMHO MANUFACTURER’S WARRANTY All Kumho brand passenger and light truck tires are covered for a maximum of 72 months from the date of purchase.
    see more
  • 110K P MW
    If an eligible Kumho brand replacement tire does not reach the warranted mileage, Kumho will offer a pro-rated credit based on the unused mileage. Exclusions may apply.
    see more
  • 70K LT MW
    If an eligible Kumho brand replacement tire does not reach the warranted mileage, Kumho will offer a pro-rated credit based on the unused mileage. Exclusions may apply.
    see more
  • ROAD HAZARD WARRANTY
    If an eligible Kumho brand replacement tire becomes irreparably damaged due a road hazard, the tire will be replaced free of charge within the first 2/32’’ of the original tread and 12 months from the date of purchase. Exclusions may apply.
    see more

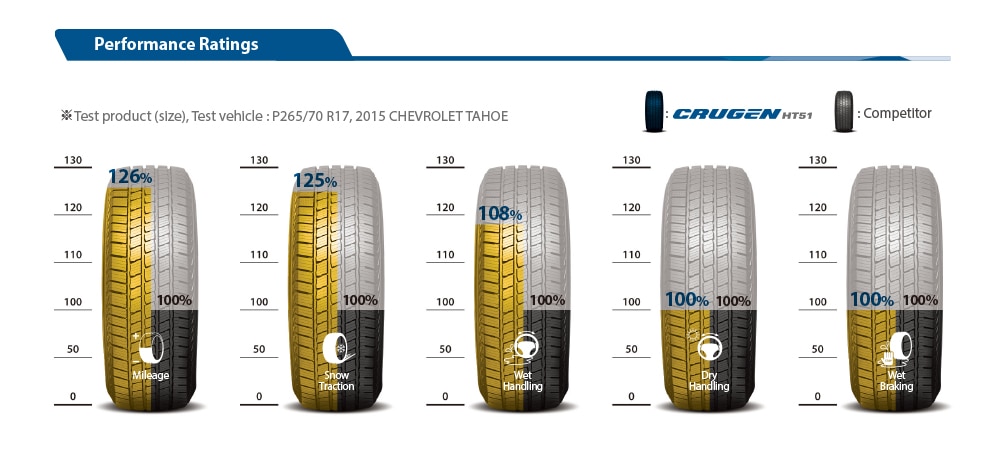

PERFORMANCE RATINGS

Numeric ratings reflect how a tire compares against other Kumho tires of similar type. A rating of 10 indicates that the tire is designed to perform extremely well under those conditions. A rating less than 4 or N/A (not applicable) indicates that the tire is not designed to excel in that area.
10 = Extremely Well, 5 = Acceptable, 1= Poor.

  • dry dry 6
  • wet wet 8
  • noise noise 9
  • wear wear 10
  • comfort comfort 9
  • snow snow 9
  • off road off road 5

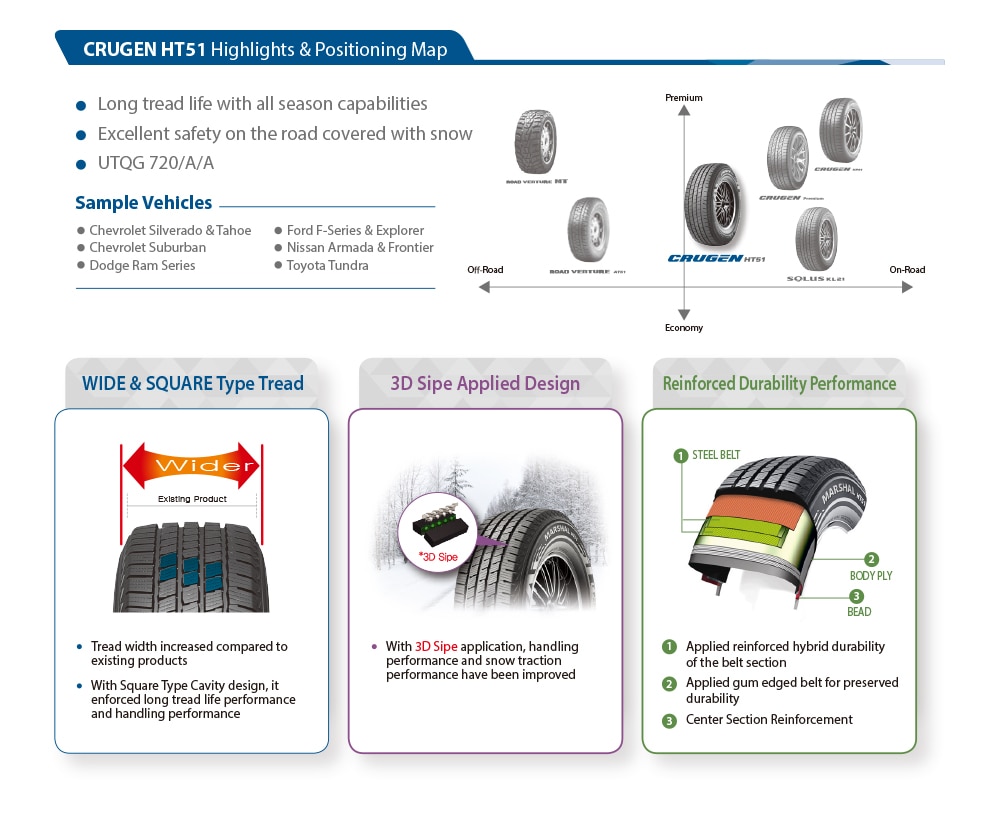

FEATURES & BENEFITS

SPECIAL FEATURES

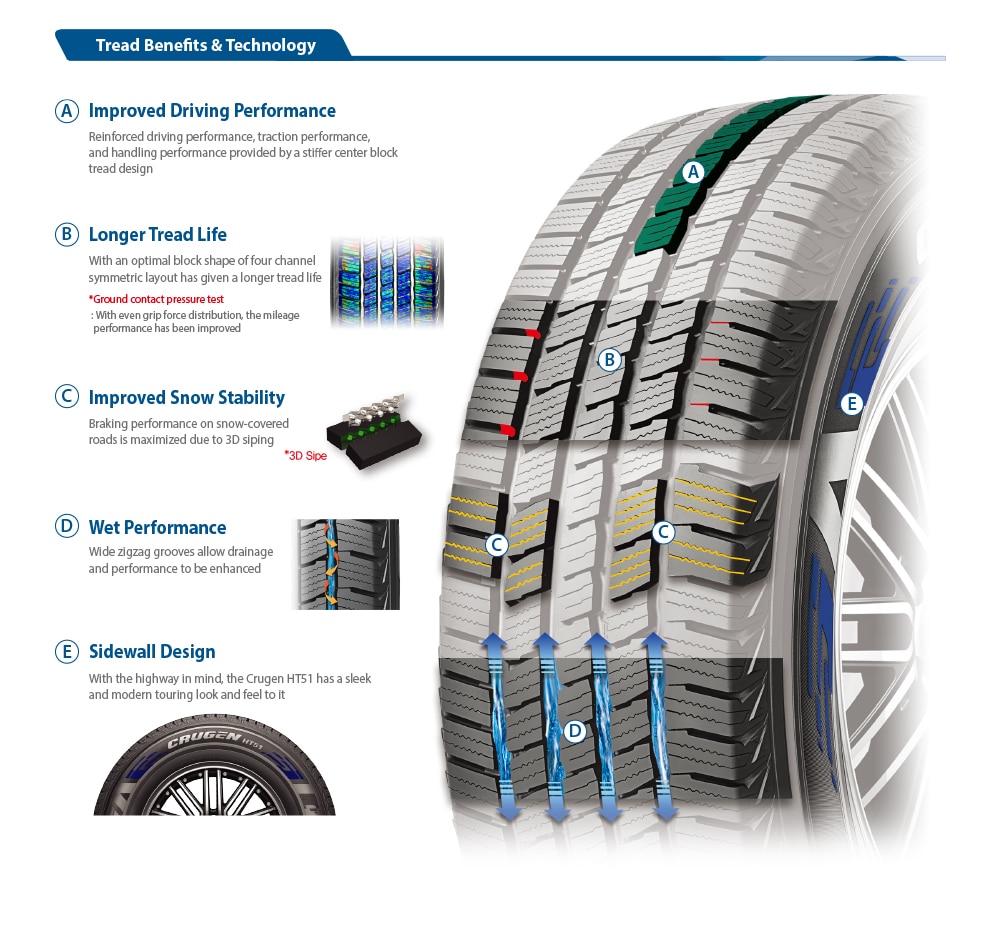

  • Stiff center block design reinforces stability, traction and handling capabilities for improved, straight-line driving performance.
  • Symmetrical four-channel layout and optimal block shape improves tread life.
  • 3D sipe applications maximize grip and breaking performance which improves stability on snow-covered roads.

SAMPLE VEHICLES

Chevrolet Silverado, Chevrolet Suburban, Chevrolet Tahoe; Dodge Ram Series; Ford Explorer, Ford F-Series; Nissan Armada, Nissan Frontier; Toyota Tundra

SIZE & TECHNICAL DATA

All-Season

Ultra high performance / All-Season
Product Code Tire Size Service Desc. Construction Sidewall UTQG Rim Width Range (in.) Section Width on Measured Rim Width Overall Diameter Tire Weight (lb) Static Loaded Radius Tread Depth (1/32") Max Load Single Max Load Double Max Inflation (psi) UPC
  • 15 Inch (6 sizes)
  • Product Code 2234903 Tire Size 215/70R15 Service Desc. 98T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 5.5 - 7.0 Section Width on Measured Rim Width 8.7 on 6.5 Overall Diameter 26.9 Tire Weight (lb) 25.9 Static Loaded Radius 12.1 Tread Depth (1/32") 12.5 Max Load Single 1653 Max Load Double Max Inflation (psi) 51 UPC 8808956236571
    Product Code 2234883 Tire Size 225/70R15 Service Desc. 100T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.0 - 7.5 Section Width on Measured Rim Width 9.0 on 6.5 Overall Diameter 27.4 Tire Weight (lb) 27.5 Static Loaded Radius 12.4 Tread Depth (1/32") 12.5 Max Load Single 1764 Max Load Double Max Inflation (psi) 51 UPC 8808956236557
    Product Code 2205813 Tire Size P235/70R15 Service Desc. 102T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.0 - 8.0 Section Width on Measured Rim Width 9.4 on 7.0 Overall Diameter 28.0 Tire Weight (lb) 28.2 Static Loaded Radius 12.6 Tread Depth (1/32") 12.0 Max Load Single 1896 Max Load Double Max Inflation (psi) 51 UPC 8808956164614
    Product Code 2230843 Tire Size 235/75R15 Service Desc. 109T Construction XL Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.0 - 8.0 Section Width on Measured Rim Width 9.3 on 6.5 Overall Diameter 28.9 Tire Weight (lb) 31.5 Static Loaded Radius 12.9 Tread Depth (1/32") 12.5 Max Load Single 2271 Max Load Double Max Inflation (psi) 50 UPC 8808956238704
    Product Code 2182133 Tire Size LT235/75R15 Service Desc. 104 / 101S Construction C Ply/6-Ply Sidewall BSW UTQG Rim Width Range (in.) 6.0 - 7.0 Section Width on Measured Rim Width 9.3 on 6.5 Overall Diameter 28.9 Tire Weight (lb) 34.3 Static Loaded Radius 12.9 Tread Depth (1/32") 14.5 Max Load Single 1985 Max Load Double 1820 Max Inflation (psi) 50 UPC 8808956181475
    Product Code 2234803 Tire Size 255/70R15 Service Desc. 108T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.5 - 8.5 Section Width on Measured Rim Width 10.2 on 7.5 Overall Diameter 29.1 Tire Weight (lb) 33.3 Static Loaded Radius 13.0 Tread Depth (1/32") 12.5 Max Load Single 2205 Max Load Double Max Inflation (psi) 51 UPC 8808956236472
  • 16 Inch (19 sizes)
  • Product Code 2181593 Tire Size P215/70R16 Service Desc. 99T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 5.5 - 7.0 Section Width on Measured Rim Width 8.7 on 6.5 Overall Diameter 27.9 Tire Weight (lb) 26.6 Static Loaded Radius 12.6 Tread Depth (1/32") 12.5 Max Load Single 1709 Max Load Double Max Inflation (psi) 51 UPC 8808956164140
    Product Code 2234823 Tire Size 215/65R16 Service Desc. 102T Construction XL Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.0 - 7.5 Section Width on Measured Rim Width 8.7 on 6.5 Overall Diameter 27.0 Tire Weight (lb) 26.7 Static Loaded Radius 12.3 Tread Depth (1/32") 12.5 Max Load Single 1874 Max Load Double Max Inflation (psi) 50 UPC 8808956236496
    Product Code 2182093 Tire Size LT215/85R16 Service Desc. 115 / 112R Construction E-Ply/10-Ply Sidewall BSW UTQG Rim Width Range (in.) 6.0 - 8.0 Section Width on Measured Rim Width 9.3 on 6.5 Overall Diameter 29.8 Tire Weight (lb) 41.1 Static Loaded Radius 13.4 Tread Depth (1/32") 14.5 Max Load Single 2680 Max Load Double 2470 Max Inflation (psi) 80 UPC 8808956181482
    Product Code 2234863 Tire Size 225/70R16 Service Desc. 103T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.0 - 7.5 Section Width on Measured Rim Width 9.0 on 6.5 Overall Diameter 28.4 Tire Weight (lb) 28.5 Static Loaded Radius 12.8 Tread Depth (1/32") 12.5 Max Load Single 1929 Max Load Double Max Inflation (psi) 51 UPC 8808956236533
    Product Code 2181613 Tire Size P225/75R16 Service Desc. 104T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.0 - 9.0 Section Width on Measured Rim Width 10.5 on 7.5 Overall Diameter 31.7 Tire Weight (lb) 29.8 Static Loaded Radius 14.1 Tread Depth (1/32") 12.5 Max Load Single 1984 Max Load Double Max Inflation (psi) 51 UPC 8808956164409
    Product Code 2246803 Tire Size LT225/75R16 Service Desc. 115 / 112S Construction E-Ply/10-Ply Sidewall BSW UTQG Rim Width Range (in.) 6.0 - 7.0 Section Width on Measured Rim Width 8.8 on 6.0 Overall Diameter 29.3 Tire Weight (lb) 39.8 Static Loaded Radius 13.1 Tread Depth (1/32") 14.5 Max Load Single 2680 Max Load Double 2470 Max Inflation (psi) 80 UPC 8808956252762
    Product Code 2234843 Tire Size 235/60R16 Service Desc. 104T Construction XL Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.5 - 8.5 Section Width on Measured Rim Width 9.4 on 7.0 Overall Diameter 27.1 Tire Weight (lb) 28.9 Static Loaded Radius 12.3 Tread Depth (1/32") 12.5 Max Load Single 1985 Max Load Double Max Inflation (psi) 50 UPC 8808956236519
    Product Code 2181673 Tire Size 235/70R16 Service Desc. 106T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.0 - 8.0 Section Width on Measured Rim Width 9.4 on 7.0 Overall Diameter 29.0 Tire Weight (lb) 31.1 Static Loaded Radius 13.1 Tread Depth (1/32") 12.5 Max Load Single 2094 Max Load Double Max Inflation (psi) 51 UPC 8808956164157
    Product Code 2205803 Tire Size P235/75R16 Service Desc. 106T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 5.5 - 7.0 Section Width on Measured Rim Width 8.7 on 6.5 Overall Diameter 29.8 Tire Weight (lb) 33.0 Static Loaded Radius 12.6 Tread Depth (1/32") 12.5 Max Load Single 2094 Max Load Double Max Inflation (psi) 51 UPC 8808956164607
    Product Code 2182153 Tire Size LT235/85R16 Service Desc. 120 / 116R Construction E-Ply/10-Ply Sidewall BSW UTQG Rim Width Range (in.) 6.5 - 8.0 Section Width on Measured Rim Width 9.8 on 7.0 Overall Diameter 31.7 Tire Weight (lb) 44.9 Static Loaded Radius 13.6 Tread Depth (1/32") 14.5 Max Load Single 3042 Max Load Double 2778 Max Inflation (psi) 80 UPC 8808956181499
    Product Code 2230883 Tire Size 245/70R16 Service Desc. 111T Construction XL Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.5 - 8.0 Section Width on Measured Rim Width 9.8 on 7.0 Overall Diameter 29.5 Tire Weight (lb) 34.5 Static Loaded Radius 13.3 Tread Depth (1/32") 12.5 Max Load Single 2403 Max Load Double Max Inflation (psi) 50 UPC 8808956238742
    Product Code 2181813 Tire Size P245/75R16 Service Desc. 109T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.5 - 8.0 Section Width on Measured Rim Width 9.8 on 7.0 Overall Diameter 30.5 Tire Weight (lb) 33.2 Static Loaded Radius 13.6 Tread Depth (1/32") 12.5 Max Load Single 2271 Max Load Double Max Inflation (psi) 51 UPC 8808956164256
    Product Code 2228623 Tire Size LT245/75R16 Service Desc. 120 / 116Q Construction E-Ply/10-Ply Sidewall BSW UTQG Rim Width Range (in.) 6.5 - 8.5 Section Width on Measured Rim Width 10.2 on 7.5 Overall Diameter 30.1 Tire Weight (lb) 41.9 Static Loaded Radius 13.5 Tread Depth (1/32") 12.0 Max Load Single 3042 Max Load Double 2778 Max Inflation (psi) 80 UPC 8808956231309
    Product Code 2230903 Tire Size 255/70R16 Service Desc. 111T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.0 - 9.0 Section Width on Measured Rim Width 10.2 on 7.5 Overall Diameter 30.1 Tire Weight (lb) 34.0 Static Loaded Radius 13.5 Tread Depth (1/32") 12.5 Max Load Single 2403 Max Load Double Max Inflation (psi) 51 UPC 8808956238766
    Product Code 2181953 Tire Size 265/70R16 Service Desc. 112T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.0 - 9.0 Section Width on Measured Rim Width 10.7 on 8.0 Overall Diameter 30.6 Tire Weight (lb) 37.4 Static Loaded Radius 13.7 Tread Depth (1/32") 12.5 Max Load Single 2469 Max Load Double Max Inflation (psi) 51 UPC 8808956164317
    Product Code 2182013 Tire Size P265/75R16 Service Desc. 114T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.0 - 8.0 Section Width on Measured Rim Width 9.4 on 7.0 Overall Diameter 29.0 Tire Weight (lb) 40.1 Static Loaded Radius 13.1 Tread Depth (1/32") 12.5 Max Load Single 2601 Max Load Double Max Inflation (psi) 51 UPC 8808956164133
    Product Code 2182213 Tire Size LT265/75R16 Service Desc. 112 / 109S Construction C-Ply/6-Ply Sidewall BSW UTQG Rim Width Range (in.) 7.0 - 9.0 Section Width on Measured Rim Width 10.7 on 8.0 Overall Diameter 30.6 Tire Weight (lb) 42.3 Static Loaded Radius 13.7 Tread Depth (1/32") 14.5 Max Load Single 2470 Max Load Double 2270 Max Inflation (psi) 50 UPC 8808956181529
    Product Code 2278483 Tire Size LT265/75R16 Service Desc. 123/120 R Construction - Sidewall BSW UTQG Rim Width Range (in.) 5.5 - 7.6 Section Width on Measured Rim Width 8.4 on 6.6 Overall Diameter 28.8 Tire Weight (lb) 30.7 Static Loaded Radius 13.7 Tread Depth (1/32") 14.5 Max Load Single 3415 Max Load Double 3085 Max Inflation (psi) 80 UPC 8808956288334
    Product Code 2230923 Tire Size P275/70R16 Service Desc. 114T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.0 - 9.0 Section Width on Measured Rim Width 11.0 on 8.0 Overall Diameter 31.2 Tire Weight (lb) 38.7 Static Loaded Radius 13.9 Tread Depth (1/32") 12.5 Max Load Single 2601 Max Load Double Max Inflation (psi) 51 UPC 8808956238780
  • 17 Inch (15 sizes)
  • Product Code 2227983 Tire Size 225/65R17 Service Desc. 102T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.0 - 8.0 Section Width on Measured Rim Width 9.0 on 6.5 Overall Diameter 28.5 Tire Weight (lb) 29.2 Static Loaded Radius 13.0 Tread Depth (1/32") 12.5 Max Load Single 1874 Max Load Double Max Inflation (psi) 51 UPC 8808956230616
    Product Code 2208603 Tire Size 235/60R17 Service Desc. 102T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.5 - 8.5 Section Width on Measured Rim Width 9.4 on 7.0 Overall Diameter 28.1 Tire Weight (lb) 29.1 Static Loaded Radius 12.8 Tread Depth (1/32") 12.5 Max Load Single 1874 Max Load Double Max Inflation (psi) 51 UPC 8808956170103
    Product Code 2228003 Tire Size 235/65R17 Service Desc. 104T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.5 - 8.5 Section Width on Measured Rim Width 9.4 on 7.0 Overall Diameter 29.1 Tire Weight (lb) 30.6 Static Loaded Radius 13.2 Tread Depth (1/32") 12.5 Max Load Single 1984 Max Load Double Max Inflation (psi) 51 UPC 8808956230630
    Product Code 2205893 Tire Size P235/70R17 Service Desc. 108T Construction XL Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.0 - 9.0 Section Width on Measured Rim Width 10.7 on 8.0 Overall Diameter 30.0 Tire Weight (lb) 33.7 Static Loaded Radius 14.7 Tread Depth (1/32") 12.5 Max Load Single 2183 Max Load Double Max Inflation (psi) 50 UPC 8808956164690
    Product Code 2231233 Tire Size 235/75R17 Service Desc. 109T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.0 - 8.0 Section Width on Measured Rim Width 9.3 on 6.5 Overall Diameter 30.9 Tire Weight (lb) 34.0 Static Loaded Radius 13.9 Tread Depth (1/32") 12.5 Max Load Single 2271 Max Load Double Max Inflation (psi) 51 UPC 8808956238926
    Product Code 2182273 Tire Size LT235/80R17 Service Desc. 120 / 117R Construction E-Ply/10-Ply Sidewall BSW UTQG Rim Width Range (in.) 6.0 - 7.5 Section Width on Measured Rim Width 9.3 on 6.5 Overall Diameter 28.1 Tire Weight (lb) 45.3 Static Loaded Radius 12.8 Tread Depth (1/32") 14.5 Max Load Single 3085 Max Load Double 2835 Max Inflation (psi) 80 UPC 8808956181536
    Product Code 2181753 Tire Size 245/65R17 Service Desc. 111T Construction XL Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.0 - 8.5 Section Width on Measured Rim Width 10.2 on 7.5 Overall Diameter 29.5 Tire Weight (lb) 34.5 Static Loaded Radius 13.4 Tread Depth (1/32") 12.5 Max Load Single 2403 Max Load Double Max Inflation (psi) 50 UPC 8808956164188
    Product Code 2181793 Tire Size 245/70R17 Service Desc. 110T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.5 - 8.0 Section Width on Measured Rim Width 9.8 on 7.0 Overall Diameter 30.6 Tire Weight (lb) 34.3 Static Loaded Radius 13.8 Tread Depth (1/32") 12.5 Max Load Single 2337 Max Load Double Max Inflation (psi) 51 UPC 8808956164164
    Product Code 2182173 Tire Size LT245/70R17 Service Desc. 119 / 116S Construction E-Ply/10-Ply Sidewall BSW UTQG Rim Width Range (in.) 6.5 - 8.0 Section Width on Measured Rim Width 9.8 on 7.0 Overall Diameter 30.6 Tire Weight (lb) 45.7 Static Loaded Radius 13.8 Tread Depth (1/32") 14.5 Max Load Single 3000 Max Load Double 2755 Max Inflation (psi) 80 UPC 8808956181567
    Product Code 2182293 Tire Size LT245/75R17 Service Desc. 121 / 118S Construction E-Ply/10-Ply Sidewall BSW UTQG Rim Width Range (in.) 6.5 - 8.5 Section Width on Measured Rim Width 10.2 on 7.5 Overall Diameter 31.5 Tire Weight (lb) 46.3 Static Loaded Radius 14.5 Tread Depth (1/32") 14.5 Max Load Single 3195 Max Load Double 2910 Max Inflation (psi) 80 UPC 8808956181543
    Product Code 2181833 Tire Size 255/65R17 Service Desc. 110T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.0 - 9.0 Section Width on Measured Rim Width 10.2 on 7.5 Overall Diameter 30.1 Tire Weight (lb) 35.2 Static Loaded Radius 13.6 Tread Depth (1/32") 12.5 Max Load Single 2337 Max Load Double Max Inflation (psi) 51 UPC 8808956242114
    Product Code 2262153 Tire Size 255/70R17 Service Desc. 112T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.5 - 8.5 Section Width on Measured Rim Width 10.2 on 7.5 Overall Diameter 31.1 Tire Weight (lb) 35.2 Static Loaded Radius 14.0 Tread Depth (1/32") 12.5 Max Load Single 2469 Max Load Double Max Inflation (psi) 51 UPC 8808956270629
    Product Code 2181913 Tire Size 265/65R17 Service Desc. 112T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.5 - 9.0 Section Width on Measured Rim Width 10.7 on 8.0 Overall Diameter 30.6 Tire Weight (lb) 36.3 Static Loaded Radius 13.8 Tread Depth (1/32") 12.5 Max Load Single 2469 Max Load Double Max Inflation (psi) 51 UPC 8808956164171
    Product Code 2181973 Tire Size P265/70R17 Service Desc. 113T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.5 - 9.5 Section Width on Measured Rim Width 11.0 on 8.0 Overall Diameter 31.7 Tire Weight (lb) 39.4 Static Loaded Radius 14.5 Tread Depth (1/32") 12.0 Max Load Single 2535 Max Load Double Max Inflation (psi) 51 UPC 8808956164263
    Product Code 2182253 Tire Size LT265/70R17 Service Desc. 121 / 118S Construction E-Ply/10-Ply Sidewall BSW UTQG Rim Width Range (in.) 7.5 - 9.5 Section Width on Measured Rim Width 11.0 on 8.0 Overall Diameter 31.7 Tire Weight (lb) 53.0 Static Loaded Radius 15.1 Tread Depth (1/32") 14.5 Max Load Single 3195 Max Load Double 2910 Max Inflation (psi) 80 UPC 8808956181581
  • 18 Inch (9 sizes)
  • Product Code 2231423 Tire Size 245/60R18 Service Desc. 105T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.0 - 8.5 Section Width on Measured Rim Width 9.8 on 7.0 Overall Diameter 29.6 Tire Weight (lb) 32.0 Static Loaded Radius 13.5 Tread Depth (1/32") 12.5 Max Load Single 2039 Max Load Double Max Inflation (psi) 51 UPC 8808956234485
    Product Code 2205783 Tire Size P255/70R18 Service Desc. 112T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.0 - 7.0 Section Width on Measured Rim Width 8.8 on 6.0 Overall Diameter 32.1 Tire Weight (lb) 38.9 Static Loaded Radius 13.2 Tread Depth (1/32") 12.5 Max Load Single 2469 Max Load Double Max Inflation (psi) 51 UPC 8808956164584
    Product Code 2230863 Tire Size 265/60R18 Service Desc. 110T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.5 - 9.5 Section Width on Measured Rim Width 10.7 on 8.0 Overall Diameter 30.5 Tire Weight (lb) 36.1 Static Loaded Radius 13.9 Tread Depth (1/32") 12.5 Max Load Single 2337 Max Load Double Max Inflation (psi) 51 UPC 8808956238728
    Product Code 2205933 Tire Size P265/65R18 Service Desc. 112T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.0 - 7.5 Section Width on Measured Rim Width 9.3 on 6.5 Overall Diameter 31.6 Tire Weight (lb) 37.2 Static Loaded Radius 14.3 Tread Depth (1/32") 12.5 Max Load Single 2469 Max Load Double Max Inflation (psi) 51 UPC 8808956164737
    Product Code 2205833 Tire Size P265/70R18 Service Desc. 114T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.5 - 8.0 Section Width on Measured Rim Width 9.8 on 7.0 Overall Diameter 32.6 Tire Weight (lb) 39.1 Static Loaded Radius 13.6 Tread Depth (1/32") 12.5 Max Load Single 2601 Max Load Double Max Inflation (psi) 51 UPC 8808956164638
    Product Code 2231213 Tire Size LT265/70R18 Service Desc. 124 / 121R Construction E-Ply/10-Ply Sidewall BSW UTQG Rim Width Range (in.) 7.0 - 9.0 Section Width on Measured Rim Width 10.7 on 8.0 Overall Diameter 32.6 Tire Weight (lb) 53.0 Static Loaded Radius 14.7 Tread Depth (1/32") 14.5 Max Load Single 3525 Max Load Double 3195 Max Inflation (psi) 80 UPC 8808956238902
    Product Code 2205913 Tire Size P275/65R18 Service Desc. 114T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 6.5 - 7.5 Section Width on Measured Rim Width 9.8 on 7.0 Overall Diameter 32.1 Tire Weight (lb) 40.8 Static Loaded Radius 14.2 Tread Depth (1/32") 12.0 Max Load Single 2601 Max Load Double Max Inflation (psi) 51 UPC 8808956164713
    Product Code 2182333 Tire Size LT275/65R18 Service Desc. 123 / 120R Construction E-Ply/10-Ply Sidewall BSW UTQG Rim Width Range (in.) 6.5 - 8.0 Section Width on Measured Rim Width 9.8 on 7.0 Overall Diameter 32.1 Tire Weight (lb) 52.9 Static Loaded Radius 13.8 Tread Depth (1/32") 14.5 Max Load Single 3415 Max Load Double 3085 Max Inflation (psi) 80 UPC 8808956181550
    Product Code 2182233 Tire Size LT275/70R18 Service Desc. 125 / 122R Construction E-Ply/10-Ply Sidewall BSW UTQG Rim Width Range (in.) 7.0 - 8.0 Section Width on Measured Rim Width 10.5 on 7.5 Overall Diameter 33.2 Tire Weight (lb) 56.2 Static Loaded Radius 14.1 Tread Depth (1/32") 14.5 Max Load Single 3640 Max Load Double 3305 Max Inflation (psi) 80 UPC 8808956181574
  • 19 Inch (1 sizes)
  • Product Code 2231383 Tire Size 245/55R19 Service Desc. 103T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.0 - 8.5 Section Width on Measured Rim Width 10.0 on 7.5 Overall Diameter 29.6 Tire Weight (lb) 33.0 Static Loaded Radius 13.7 Tread Depth (1/32") 12.0 Max Load Single 1929 Max Load Double Max Inflation (psi) 51 UPC 8808956234447
  • 20 Inch (3 sizes)
  • Product Code 2231403 Tire Size 265/50R20 Service Desc. 111T Construction XL Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.5 - 9.5 Section Width on Measured Rim Width 10.9. on 8.5 Overall Diameter 30.5 Tire Weight (lb) 37.9 Static Loaded Radius 14.1 Tread Depth (1/32") 12.0 Max Load Single 2403 Max Load Double Max Inflation (psi) 50 UPC 8808956234461
    Product Code 2182033 Tire Size P275/55R20 Service Desc. 111T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.5 - 9.5 Section Width on Measured Rim Width 11.2 on 8.5 Overall Diameter 31.9 Tire Weight (lb) 40.9 Static Loaded Radius 14.6 Tread Depth (1/32") 12.0 Max Load Single 2403 Max Load Double Max Inflation (psi) 51 UPC 8808956164195
    Product Code 2205873 Tire Size P275/60R20 Service Desc. 114T Construction - Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 7.0 - 8.5 Section Width on Measured Rim Width 11.0 on 8.0 Overall Diameter 33.0 Tire Weight (lb) 41.4 Static Loaded Radius 14.9 Tread Depth (1/32") 12.5 Max Load Single 2601 Max Load Double Max Inflation (psi) 51 UPC 8808956164676
  • 22 Inch (1 sizes)
  • Product Code 2261663 Tire Size 285/45R22 Service Desc. 114H Construction XL Sidewall BSW UTQG 720 A/A Rim Width Range (in.) 9.0 - 10.5 Section Width on Measured Rim Width 11.2 on 9.5 Overall Diameter 32.1 Tire Weight (lb) 42.8 Static Loaded Radius 14.9 Tread Depth (1/32") 12.0 Max Load Single 2601 Max Load Double Max Inflation (psi) 50 UPC 8808956269616
