KLT12e

  • TREAD CODE : KLT12e

Designed primarily as an over-the-road trailer tire, the KLT12e delivers low rolling resistance, minimized shoulder wear and longer mileage.

WARRANTIES

NOTE:NOT VALID FOR OE TIRES

  • KUMHO MANUFACTURER’S WARRANTY
    All Kumho commercial tires are covered for a minimum of 60 months from the date of purchase. Long haul Smartway verified tires have coverage for 72 months.
    Learn more

DEALER LOCATOR

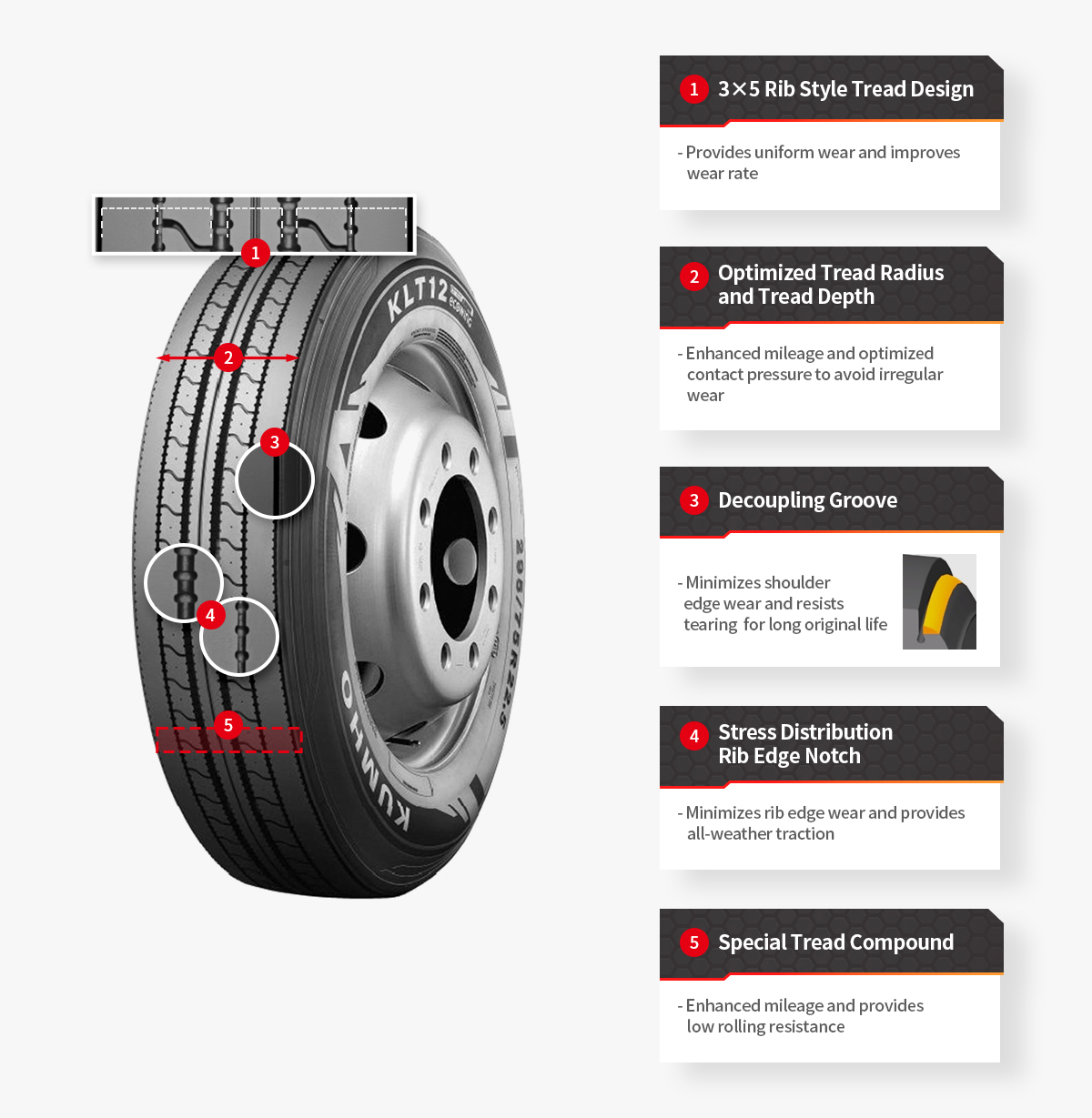

SPECIAL FEATURES

  • Cut and chip resistant and balanced wear
  • Wide and deep tread with balanced contact patch for high mileage
  • Application of angled square grooves to prevent abnormal wear

SIZE & TECHNICAL DATA

Long haul

Ultra high performance / All-Season
Product Code Tire Size Ply Rating / Load Range Measuring Rim Width Overall Dia (in.) Section Width (in.) Approved Rim Width Max Load (lbs) @ Cold Inflation Pressure (psi) Single Max Load (lbs) @ Cold Inflation Pressure (psi) Dua RPM Max Speed Tread Depth (1/32") Tire Weight Smartway
  • 22.5 Inch (2 sizes)
  • Product Code 2246223 Tire Size 11R22.5 Ply Rating / Load Range 14 Measuring Rim Width 8.2 Overall Dia (in.) 40.8 Section Width (in.) 10.9 Approved Rim Width 7.5 Max Load (lbs) @ Cold Inflation Pressure (psi) Single 6175 @ 105 Max Load (lbs) @ Cold Inflation Pressure (psi) Dua 5840 @ 105 RPM 509 Smartway 75 Tread Depth (1/32") 13.5 Tire Weight 105.8 Smartway Yes
    Product Code 2176123 Tire Size 295/75R22.5 Ply Rating / Load Range 14 Measuring Rim Width 8.2 Overall Dia (in.) 39.8 Section Width (in.) 10.9 Approved Rim Width 7.5 Max Load (lbs) @ Cold Inflation Pressure (psi) Single 6175 @ 110 Max Load (lbs) @ Cold Inflation Pressure (psi) Dua 5675 @ 110 RPM 522 Smartway 75 Tread Depth (1/32") 13.0 Tire Weight 107.2 Smartway Yes
  • 24.5 Inch (2 sizes)
  • Product Code 2246213 Tire Size 285/75R24.5 Ply Rating / Load Range 14 Measuring Rim Width 8.2 Overall Dia (in.) 40.9 Section Width (in.) 10.6 Approved Rim Width 7.5 Max Load (lbs) @ Cold Inflation Pressure (psi) Single 6175 @ 110 Max Load (lbs) @ Cold Inflation Pressure (psi) Dua 5675 @ 110 RPM 508 Smartway 75 Tread Depth (1/32") 13.5 Tire Weight 104.9 Smartway Yes
    Product Code 2253313 Tire Size 11R24.5 Ply Rating / Load Range 14 Measuring Rim Width 8.2 Overall Dia (in.) 44.1 Section Width (in.) 10.9 Approved Rim Width 7.5 Max Load (lbs) @ Cold Inflation Pressure (psi) Single 6610 @ 105 Max Load (lbs) @ Cold Inflation Pressure (psi) Dua 6005 @ 105 RPM 483 Smartway 75 Tread Depth (1/32") 13.5 Tire Weight 113.2 Smartway Yes

COMMERCIAL TRUCK GUIDE

  • PRIMARY
  • PERMITTED

WHEEL POSITION

  • TRAIL
  • DRIVE
  • STEER

APPLICATION

  • LINE HAUL
  • REGIONAL
  • P&D
  • MIXED
  • OFF-ROAD
